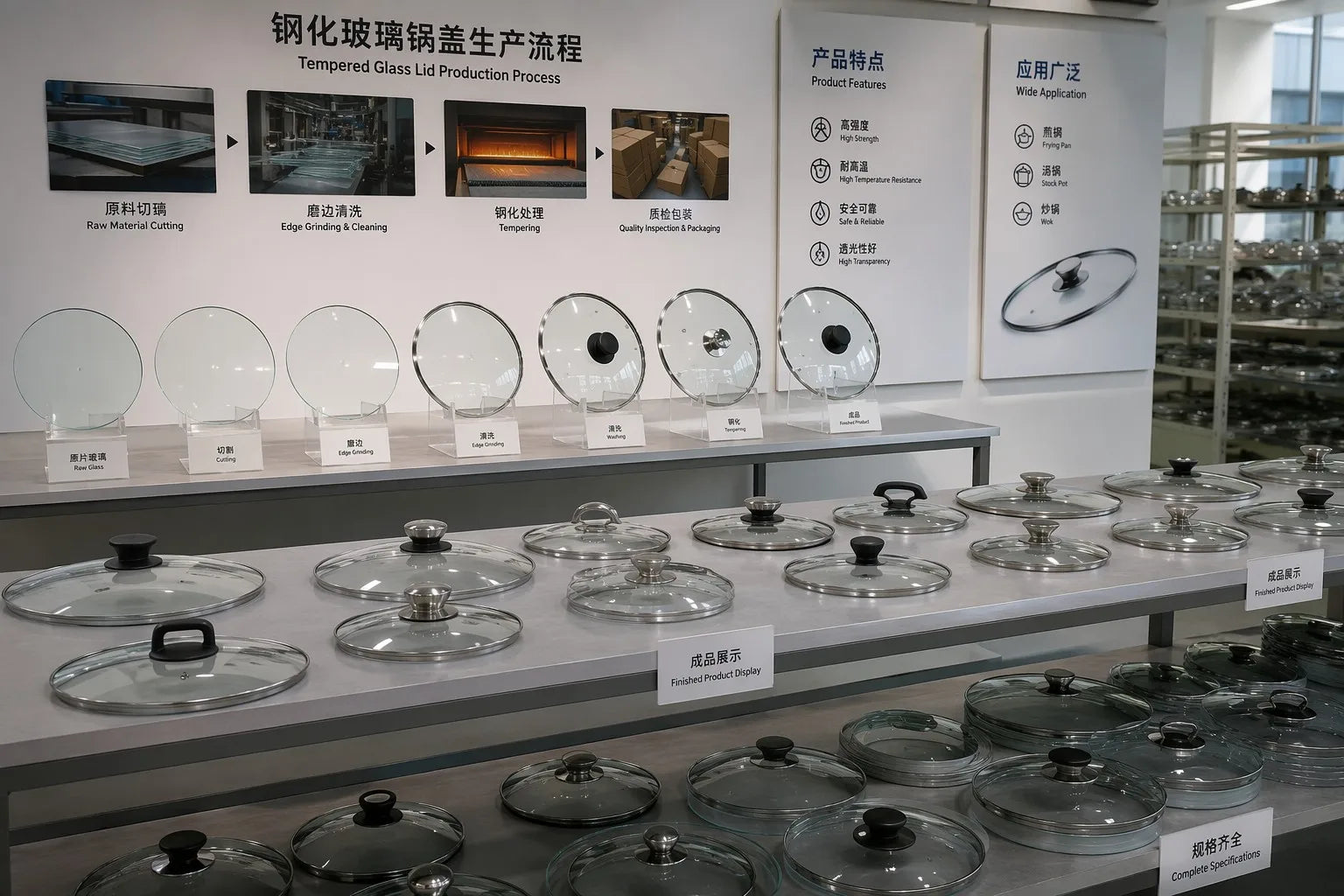

A cookware glass lid manufacturer does not simply cut glass and ship lids. Behind every finished tempered glass cookware lid is an 11-step production sequence in which quality is accumulated or compromised at each stage, and where the difference between a lid that passes 500 dishwasher cycles and one that edge-chips after 50 is determined by decisions made on the factory floor — not on a specification sheet. Buyers who understand the production process can evaluate a supplier's quality claims accurately, ask the right questions during a factory visit, and identify which process steps represent the highest risk for their specific product specification. This guide walks through all 11 steps that a professional glass lid manufacturer applies from raw float glass to export-ready container, with notes on the quality controls that each step should include.
Steps 1–4: raw material to tempered blank — the glass foundation
A pot lid factory China production sequence begins with incoming float glass inspection. Step 1 is raw glass receipt and certification check: the factory logs the glass lot number, supplier, thickness nominal and tolerance certificate against the purchase order. Inline sampling confirms surface quality (bubble count, scratch depth) against GB/T 11614 Q3 classification. Step 2 is cutting: computer-controlled cutting tables score the float glass to the required circle or oval diameter, with tolerances held to ±0.5 mm. Scrap rate at cutting is a direct indicator of glass quality consistency — a high-quality lot produces under 3% cutting scrap; poor-quality lots run 8–12%. Step 3 is edge grinding and polishing: the cut blank travels through a multi-stage edge grinder that removes the sharp raw-cut edge and applies a polished bevel. Edge finish quality determines resistance to edge chipping in field use and is one of the most common retail defect categories. Step 4 is pre-tempering cleaning: the ground blank is washed in a multi-stage ultrasonic cleaning line to remove glass dust, grinding oil, and surface contamination before entering the furnace — contamination that survives into tempering leaves visible inclusions that cause retail returns.
Steps 5–8: tempering, component assembly and in-line QC — where most quality variance originates
Steps 5 through 8 are where the majority of field-failure risk is created or eliminated. Understanding the comparison below helps buyers evaluate whether a glass cookware lid supplier is running a compliant process or shortcutting it.
| Step | Professional Factory Practice | Shortcut Practice | Field Failure Result |
|---|---|---|---|
| Step 5: Tempering | Furnace at 620–680°C; 6–8 min soak; controlled quench rate; 3 pcs/1,000 fragment test post-furnace | Shortened cycle 3–4 min to increase throughput; no per-lot fragment test | Under-tempered glass fails thermal shock at 100–200 cycles |
| Step 6: Hole drilling (vent) | Diamond drill at CNC-controlled position ±1 mm from center; edge chamfer to remove drill stress | Manual drill; no chamfer; position varies ±3–5 mm | Stress crack initiating from vent hole under heat cycling |
| Step 7: Rim stamping and assembly | SUS 304 or SUS 430 rim stamped to ±0.2 mm channel fit; adhesive bead weight logged; adhesion pull test 3 pcs/1,000 | Rim fit tolerance not checked; adhesive underfilled; no pull test | Rim delamination in field — safety recall category |
| Step 8: Gasket and knob assembly | Food-grade silicone gasket seated per fixture; knob torque verified per spec; 100% functional check | Manual gasket seating; knob torque not verified; sampling only | Gasket dislodges in use; knob loosens after 50 cycles |
The tempering step is the single highest-impact stage in the production sequence. A furnace operator who shortens the soak cycle from 7 minutes to 4 minutes to increase batch throughput produces glass that passes visual inspection but fails thermal shock testing at 150–200 dishwasher cycles in field use. The only way to detect this from a buyer position is to require per-lot thermal shock test reports with the actual lot number and test date — not only a certification certificate.
Steps 9–11: finishing, QC, packaging and export — the documentation chain
Step 9 is final assembly surface finishing: silk-screen logo or laser engraving application (where specified), followed by UV cure or engraving verification. Step 10 is AQL final inspection: trained inspectors work to ISO 2859 sampling tables, checking for edge chips, rim rust, logo adhesion, vent hole alignment, gasket seat, knob function, and visual surface quality. At AQL 2.5 for major defects and AQL 4.0 for minor defects, the inspector records defect classification and batch pass/fail decision. Step 11 is packaging and export preparation: lids are nested in EPE foam or cardboard inserts, packed per the buyer's carton specification, palletized, and stretch-wrapped for container loading. A professional cookware glass lid manufacturer issues a complete shipment documentation package: packing list, commercial invoice, certificate of origin, AQL inspection report, thermal shock test report (lot-specific), material certificates (glass, rim, gasket), and LFGB/FDA compliance references. This package is the buyer's primary protection against customs queries and retail compliance audits. FDA 21 CFR 177 food-contact compliance, LFGB §31 migration, BSCI social audit, and EN 12983-1 thermal shock certification should all be current and available for review within 48 hours of request.
Boyu Glass Factory Direct Advantage
Boyu Glass runs the full 11-step process at its Fenghua facility with in-house furnace lines (no subcontract tempering), CNC diamond drilling, automated rim stamping, and a dedicated AQL inspection line. Per-lot thermal shock test reports, pull-test records, and AQL inspection reports are issued with every container. FDA, LFGB and BSCI certifications are maintained continuously; material change notification is a standard OEM contract clause. MOQ 1,000 pieces per SKU; 45-day lead time on first orders; 30-day on repeats.
FAQ
Q1: Which of the 11 production steps should a buyer focus on during a factory audit?
Prioritize Steps 5 (tempering), 7 (rim assembly and adhesion), and 10 (AQL final inspection). These three steps are where the largest share of field-return defects originate, and they are the steps where a shortcutting factory is most likely to have gaps in documentation. Ask the factory to show you the furnace temperature log for the last 10 production days and the per-lot thermal shock test register. See the full factory audit framework: How to Audit a Glass Lid Factory in China Before Your First Order.
Q2: How does the 11-step process change for silicone-rim lids versus stainless-rim lids?
Steps 1–6 are identical. Step 7 differs: silicone-rim assembly uses an injection-molded or extruded silicone band rather than a stamped metal rim, and the adhesion check is a peel-resistance test rather than a pull test. Step 8 typically omits a separate knob gasket for silicone-rim designs because the rim itself provides the seal. The silicone compound requires its own LFGB §31 migration test — a separate certification from the base glass test.
Q3: What is a realistic per-batch defect rate for a professional glass lid manufacturer, and how does it affect my order?
A well-run cookware glass lid manufacturer operating full AQL 2.5 inspection achieves major defect rates below 0.8% per batch in steady-state production. First-production runs on a new SKU typically run 1.5–2.5% as the process stabilizes. Defect rates above 3% on repeat orders signal a quality-system breakdown and should trigger a factory audit request and third-party pre-shipment inspection before the next container is approved for release.
Related B2B Sourcing Guides
Continue reading on related sourcing topics for cookware brands and importers:
Conclusion: Three Takeaways
- Quality is determined step-by-step, not at final inspection. A lid that failed at tempering or rim assembly cannot be rescued by a thorough final AQL check — the defect is built in. Production-stage documentation is the buyer's protection.
- The tempering step is the highest-risk stage. Shortened furnace cycles are invisible to visual inspection and only manifest as field failures after 100–200 use cycles. Per-lot thermal shock test reports are the only upstream evidence.
- Shipment documentation is the compliance chain. A complete package — AQL report, thermal shock report, material certificates, LFGB/FDA reference — protects a buyer at customs, at retail, and in any product liability event.
