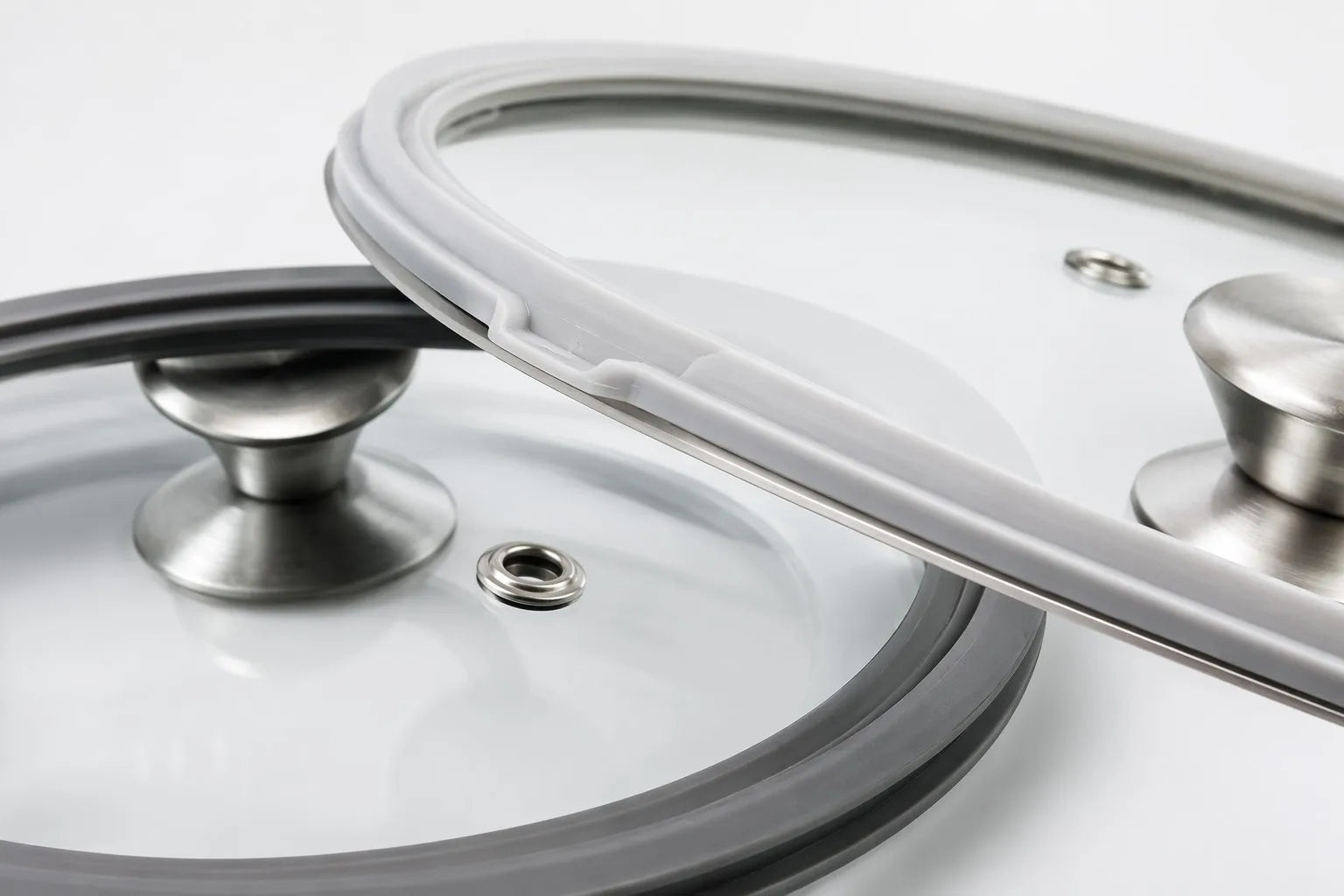

The silicone gasket is the single highest-return-rate component in a tempered glass cookware lid program, and silicone gasket glass lid OEM specification is a detail that most buyers treat as a footnote to the main product spec — until field returns arrive. A gasket that fails at 100 dishwasher cycles, releases in the first drop test, or fails LFGB §31 primary aromatic amine testing does not fail because the glass was wrong or the rim was undersized. It fails because the gasket compound, profile, hardness, or seating geometry was under-specified at the RFQ stage. This guide covers every specification variable that determines whether a silicone gasket seals correctly, survives the rated service life, and passes food-contact compliance in the EU and US markets — and how to write those specifications clearly enough that every factory quoting your program is priced on the same component.
Food grade silicone cookware lid factory: compound grade and compliance classification
A food grade silicone cookware lid factory typically uses one of three silicone compound grades for lid gaskets. Understanding the difference determines which compounds are acceptable for your market and which will create compliance problems at retail.
VMQ (Vinyl Methyl Silicone) is the most common grade for standard stainless-rim and silicone-rim cookware lid gaskets. It operates continuously at -60°C to 220°C, resists dishwasher detergents, and passes FDA 21 CFR 177.2600 and LFGB §31 food-contact testing when formulated without prohibited plasticizers or pigments. VMQ is the minimum acceptable grade for EU retail programs. Cost at 5,000-piece volume: USD 0.04-0.07 per gasket depending on cross-section size.
PVMQ (Phenyl Vinyl Methyl Silicone) extends thermal performance to -100°C lower range and improves compression-set resistance — the gasket's ability to return to original shape after prolonged compression. This is relevant for programs where lids are shipped and stored stacked under pressure for extended periods. PVMQ costs 15-25% more than VMQ and is typically specified for premium programs or pressure-cooker applications. Both compounds require per-lot compound lot certification confirming no post-cure residue, no restricted colorant, and no processing aid above the migration limit.
EPDM (Ethylene Propylene Diene Monomer) is not silicone and is sometimes substituted by factories without disclosure to reduce cost. EPDM does not pass LFGB §31 primary aromatic amine limits and is not acceptable for EU retail programs. Any factory that cannot show a silicone compound certificate (not an EPDM certificate) on request is potentially substituting materials. Require compound lot certificates with every batch, not just at initial qualification.
8mm silicone rim glass lid: profile, width, hardness and seating geometry
For an 8mm silicone rim glass lid or any silicone-rim configuration, the gasket profile, width, and durometer hardness are the three specification dimensions that most directly affect field sealing performance. The table below compares the standard profiles used in cookware glass lid programs.
| Profile Type | Cross-Section | Typical Width | Hardness (Shore A) | Best Application | Compression Set Risk |
|---|---|---|---|---|---|
| Flat gasket | Rectangular | 3–6 mm | 40–60 Shore A | Standard stainless-rim round lids (G-series); low seal pressure | Low at 40–50 Shore A |
| O-ring section | Round (circular) | 2–4 mm diameter | 50–70 Shore A | Multi-cooker inset lids; tight pot-rim tolerance | Moderate; size selection critical |
| D-section | D-shape (flat back, curved front) | 5–8 mm | 40–60 Shore A | Pressure-cooker lids; channel rim designs | Low if channel depth is correct |
| Lip/flanged gasket | L-shape or T-shape | 8–14 mm total width | 30–50 Shore A | Silicone-rim lids (QT/YD format); wraps over glass edge | Very low; wrapping geometry stabilizes it |
Hardness specification is the variable most commonly under-specified. At 30-40 Shore A, a gasket compresses easily but may not rebound after sustained compression (compression-set failure). At 60-70 Shore A, the gasket seals under load but may not conform to pot-rim variation across manufacturing tolerances — resulting in rocking lids or pressure leakage. For standard G-series and C-series round lids with flat gaskets, 45-55 Shore A is the practical target range. For pressure-rated sealed lids (IEC 60335-2-15), 50-60 Shore A D-section gaskets rated to 80 kPa differential are the correct specification.
Seating geometry — the channel depth and width in the rim into which the gasket is seated — must be matched to the gasket's compressed height. A gasket that sits 60% into the channel (40% exposed above rim plane) gives the correct seal force without over-compression. Specify the seated compressed height explicitly in the OEM drawing, and require the factory to provide gasket spring-back data (% recovery after 72 hours under rated compression) for the specific compound and hardness grade being quoted.
Compliance testing for silicone gaskets: LFGB, FDA and per-lot requirements
Silicone gaskets are food-contact materials and must be tested independently from the glass and stainless-rim components. LFGB §31 migration testing for the silicone compound covers primary aromatic amines, heavy metals (lead, cadmium, chromium) and sensory evaluation (odor, taste). FDA 21 CFR 177.2600 sets extractable residue limits for silicone compounds in food contact. Both require testing of the specific compound formulation at the applied contact conditions — the compound certificate and test report must match the gasket compound lot used in production. A change of colorant, processing aid, or base polymer supplier constitutes a new formulation requiring re-testing. Per-lot compound lot certificates confirming no post-cure VOC residue above limit are required for EU retail programs; annual full migration re-testing is expected by major German and Nordic retail buyers. BSCI social compliance is a factory-level audit, not a compound-level requirement, but auditors increasingly review chemical management records including gasket compound safety data sheets.
Boyu Glass Factory Direct Advantage
Boyu Glass uses VMQ food-grade silicone gaskets on all C-Series, G-Narrow, G-Wide and Silicone-Rim product lines, with compound lot certificates issued per production batch. LFGB §31 migration test reports covering the specific gasket formulations are available for buyer review. Flat gasket, O-ring, D-section and lip/flanged profiles are available depending on rim configuration, with hardness options from 40 to 70 Shore A specifiable per OEM drawing. Gasket compound change notifications are a standard OEM contract clause — Boyu does not substitute compounds without buyer sign-off.
FAQ
Q1: How do I specify a silicone gasket in an OEM drawing to prevent the factory from substituting a non-compliant compound?
Include four elements in the drawing note: (1) compound type: VMQ food grade silicone; (2) hardness: Shore A value with ±5 tolerance; (3) color and pigment restriction: food-grade pigment only, no cadmium or lead; (4) compliance reference: LFGB §31 and FDA 21 CFR 177.2600 compliant, compound lot certificate required with each production batch. Without all four, a factory has latitude to use EPDM, incorrect hardness, or non-food-grade colorants and argue they met an ambiguous specification.
Q2: What is the correct way to handle a gasket that passes initial LFGB testing but fails market surveillance retesting 12 months later?
Gasket failure at market surveillance retesting is almost always a compound substitution or raw material change at the factory side. Request the compound lot certificates for both the initial certified batch and the failed batch, compare the compound lot numbers, and request the factory's compound supplier change log. If compound substitution is confirmed, it is a material breach of the OEM contract's change notification clause. Require the factory to re-test the current compound and halt shipments of the affected batch until compliance is re-confirmed.
Q3: Is there a minimum gasket width for pressure-cooker lid applications, and does it differ from standard cookware?
For pressure-cooker lids rated to 80 kPa (IEC 60335-2-15 pressure-adjacent category), the minimum D-section or O-ring gasket width is typically 5 mm with a channel depth of at least 3 mm. Below 5 mm, gasket deformation under rated pressure creates a path for steam leakage at the rim-to-glass joint. Standard non-pressure cookware lids (pots, saucepans, frying pans) can use 3-4 mm flat gaskets with no pressure-performance requirement, as these lids rely only on gravity and the weight of the lid for sealing.
Related B2B Sourcing Guides
Continue reading on related sourcing topics for cookware brands and importers:
Conclusion: Three Takeaways
- Compound grade determines compliance, not cost. VMQ is the minimum acceptable grade for EU and US retail; EPDM substitution — which factories sometimes make silently — fails LFGB §31 primary aromatic amine limits and creates a recall-category compliance event.
- Hardness and profile must match the application. 45-55 Shore A flat gasket is correct for standard G/C-series round lids; 50-60 Shore A D-section is required for pressure-rated applications. Mismatched hardness produces either compression-set failure (too soft) or rocking/leakage (too hard).
- Per-lot compound certification is the only audit-proof evidence. Annual full LFGB testing at qualification is table stakes; per-lot compound lot certificates confirming no material change are the only way to detect factory-side substitution between audit cycles.
