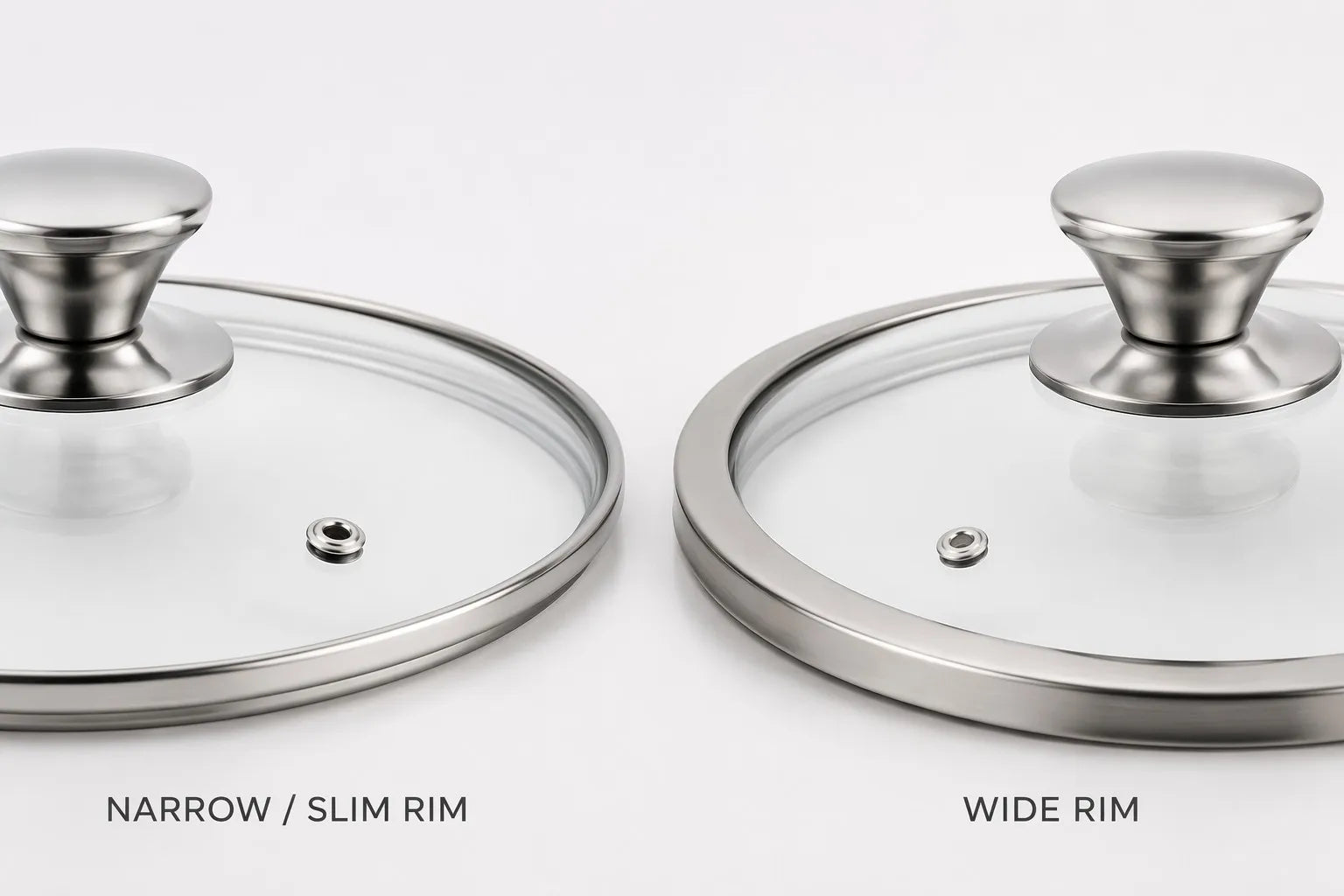

Choosing between a narrow-rim and a wide-rim tempered glass cookware lid is one of the earliest OEM configuration decisions a brand or importer makes — and one of the most consequential for pan compatibility, retail-shelf fit, and per-unit cost. A narrow rim glass lid manufacturer OEM program covers the G-Narrow configuration (rim width 8–10 mm), while wide-rim programs use 14–18 mm rim widths. Neither is universally better; each fits specific pot geometries, cooking categories, and retail price tiers. Brands that specify the wrong configuration discover the problem at sample stage or — more expensively — when a container of lids fails the retailer's fit-test against the pot bodies they are paired with. This guide clarifies the geometric, functional, and commercial differences between narrow and wide-rim glass lid configurations, and the OEM specification variables that determine which configuration is right for a given program.
Slim rim glass lid factory: what narrow-rim geometry controls and why it matters
A slim rim glass lid factory producing G-Narrow configuration lids works to rim widths of 8–10 mm measured from the outer glass edge to the outer rim edge. This geometry is designed for pots with a tight, straight-walled flange — typically stainless steel saucepans, frying pans, and sauté pans where the lid sits flush on the pan wall with minimal overhang. The narrow rim is the standard configuration for European and Scandinavian cookware programs because European pot bodies are engineered to close tolerances and the consumer expectation is a flush, low-profile lid appearance on the finished cookware set. The constraint of narrow-rim geometry is pot-flange tolerance sensitivity: if the pot flange width varies by more than ±1 mm across a production batch, a narrow-rim lid will rock on some units. This makes narrow-rim programs dependent on tight pot-body tolerances that must be confirmed before the lid OEM drawing is finalized. Rim material grade — SUS 304 (standard for EU programs) or SUS 430 — is specified at the same configuration stage. Narrow-rim lids at SUS 304 with 4 mm glass are the most common European mid-tier retail configuration, typically FOB Ningbo at USD 1.90–2.30 at 5,000-piece volume depending on diameter (18–28 cm range).
G-series glass lid wholesale: wide-rim geometry, universal fit and price-tier mapping
G-series glass lid wholesale programs in the wide-rim (G-Wide) configuration use rim widths of 14–18 mm, designed to bridge pot-flange diameter variance across a range of pot body tolerances. Wide-rim lids sit on top of the pot wall with a pronounced overhang, creating a visual "cap" appearance distinct from the flush European look. This format is the dominant configuration for Indian small-appliance programs, Middle East multi-size cookware sets, and budget retail programs where a single lid diameter needs to fit two or three pot diameters in a range. The table below compares the two configurations across the dimensions most relevant to an OEM sourcing decision.
| Dimension | G-Narrow (Slim Rim 8–10 mm) | G-Wide (Wide Rim 14–18 mm) |
|---|---|---|
| Rim width | 8–10 mm | 14–18 mm |
| Pot compatibility | Single pot diameter ±1 mm tolerance | Multi-pot range ±3–5 mm tolerance |
| Visual appearance | Flush, low-profile | Overhang "cap" profile |
| Target market | EU/Scandinavian cookware OEM | India, Middle East, budget retail |
| Rim material | SUS 304 standard | SUS 304 or SUS 430 |
| FOB cost delta vs narrow | Baseline | +$0.05–0.10 (wider rim stamping) |
| Tooling cost | Standard round lid tooling | Standard round lid tooling |
| Gasket type | Flat silicone, 3–4 mm width | Wider flat or lipped silicone, 5–6 mm |
| Dishwasher steam clearance | Closer to pot wall, less steam venting | More steam clearance at rim overhang |
| Retail packaging standard | Individual box, precise diameter spec | Often sold in diameter-range sets |
The steam-clearance row is practically important for pressure-adjacent cooking formats (tagines, Dutch ovens, braising pots): wide-rim lids allow more steam to vent at the rim-to-pot junction, which is a feature for slow-cooking applications but a limitation for programs where a tight seal is required. Confirm which cooking application the lid serves before specifying rim width.
Compliance and quality standards for both configurations
Both G-Narrow and G-Wide configurations require the same foundational compliance stack for EU and US market programs. FDA 21 CFR 177 food-contact migration testing covers all food-adjacent materials — glass, rim, gasket, knob — and is required per SKU specification change (a rim width change from 10 mm to 16 mm with a new gasket spec constitutes a specification change requiring re-confirmation). LFGB §31 migration testing is required per configuration for German retail, with rim grade (SUS 304 vs SUS 430) determining whether nickel migration is a compliance risk. BSCI social audit is required for European retail buyers regardless of configuration. Thermal shock testing per EN 12983-1 applies to both formats at 220°C to 20°C water quench, and per-lot test reports must be issued for every production run. The wider gasket in G-Wide programs requires its own food-grade silicone compliance confirmation — wider gaskets often use a different silicone extrusion profile that must be tested separately.
Boyu Glass Factory Direct Advantage
Boyu Glass produces both G-Narrow and G-Wide configurations at the Fenghua facility under the same QC and compliance framework. G-Narrow programs cover 16–34 cm diameters in SUS 304 or SUS 430, with 4 mm or 5 mm glass options. G-Wide programs cover 18–32 cm with wider gasket options confirmed for LFGB compliance. Both configurations share the same FDA, LFGB and BSCI certification base; per-lot thermal shock reports are issued for every container. MOQ 1,000 pieces per SKU; standard 45-day lead time on first orders.
FAQ
Q1: Can I switch a program from G-Narrow to G-Wide after first production without new tooling?
Rim width change requires new rim stamping tooling (USD 800–1,500 typically) and a revised OEM drawing. The glass blank and tempering tooling remain the same if the nominal diameter is unchanged. The gasket changes profile and requires LFGB re-confirmation for EU programs. Allow 15–20 working days for tooling and re-sampling from the decision point.
Q2: Which configuration is more forgiving for a first-time importer sourcing a universal lid for multiple pot brands?
G-Wide is consistently more forgiving for multi-pot applications. Its wider rim accommodates ±3–5 mm flange variance across different pot brands without rocking or gaps, which is particularly important when selling lids as a standalone category (e.g. replacement lids, accessory packs) rather than as a matched set with a specific pot body.
Q3: What is the minimum order quantity for sampling both configurations before committing to production?
Sample production for both G-Narrow and G-Wide from Boyu Glass runs at standard sample rates — typically 5–10 pieces per configuration per diameter, with a sample lead time of 7–10 working days from approved drawing. Tooling fees (if any) are quoted separately; existing tooling for standard diameters (20, 22, 24, 26, 28 cm) requires no new tooling investment for first samples.
Related B2B Sourcing Guides
Continue reading on related sourcing topics for cookware brands and importers:
Conclusion: Three Takeaways
- Rim width is a pot-geometry decision, not an aesthetic one. G-Narrow suits tight-tolerance European pan bodies; G-Wide suits multi-pot range compatibility and markets where cooking vessel tolerances vary widely.
- Configuration change after production is a tooling reset. A rim width change means new stamping tooling, new gasket spec, and LFGB re-confirmation — build configuration decisions into the RFQ, not the sample revision.
- Both configurations carry the same compliance obligations. FDA, LFGB (per rim grade and gasket profile), BSCI, and per-lot thermal shock are required for EU/US programs regardless of narrow or wide-rim format.
