Specifying custom cookware lid packaging OEM China correctly is the last line of protection between the factory QC pass and the retailer's receiving dock. A tempered glass lid that passes all eight sample inspection dimensions and ships in an undersized carton with inadequate foam cushioning arrives at the EU distribution center with edge chips, shattered packing inserts, and a pallet of retail returns. Packaging specification is often treated as a secondary detail in the OEM process — something to finalize after the product spec is locked — but the opposite approach produces better results: packaging must be designed alongside the product, because lid diameter, glass thickness, and knob height determine insert geometry, carton inner dimensions, and tier weight. This guide covers the five standard packaging formats for OEM glass lid programs, the specification variables for each, the compliance and sustainability requirements that major retail buyers now request, and how to write a packaging specification that survives factory production without silent changes.
Glass lid retail packaging factory: the five standard formats and when to use each

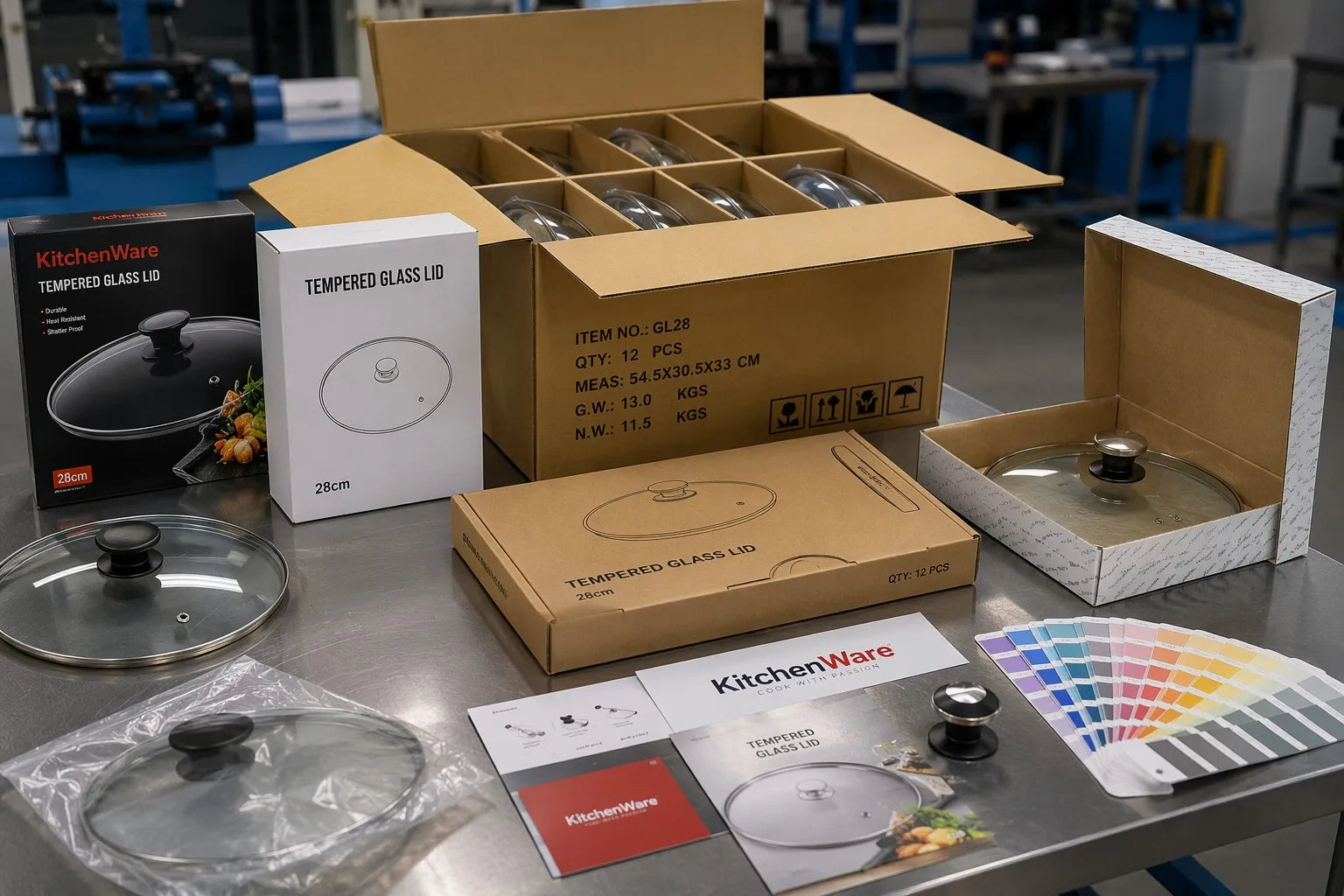

A glass lid retail packaging factory in the Ningbo cluster typically offers five standard packaging formats, each suited to a different channel and price tier. Selecting the wrong format for your distribution channel is a common cause of retail chargeback and consumer return.
Format 1 — Brown-box bulk: Lids stacked in nested configuration inside a single-wall or double-wall corrugated carton, separated by EPE foam sheets. No retail-facing graphics. Used for direct-to-kitchen OEM supply (restaurant groups, catering wholesalers), or as the inner export pack for retail programs where the end-user overwraps at distribution. Carton size is calculated from the lid diameter plus 10 mm clearance per side, with 20 mm EPE foam top and bottom. Stack limit 12–18 pcs depending on lid diameter and glass weight.
Format 2 — White individual box: Each lid in its own white paperboard box, EPE foam insert molded to the lid profile. Common for mid-tier replacement-lid programs and B2B hospitality supply where retail-facing graphics are not required but individual unit protection is. Box height matches lid height plus knob clearance plus 10 mm foam.
Format 3 — Printed retail color box: Full-color lithographic print on 350 gsm kraft or white board. Required for EU and US supermarket, kitchenware chain, and online retail programs. Includes brand logo, product dimensions, compliance marks (FDA, LFGB, material call-outs), barcode (EAN-13 or UPC-A), and country-of-origin statement. Box is designed to stand vertically on-shelf with the lid visible through a window panel or illustrated through a rendered product shot.
Format 4 — FSC-certified retail box: Identical to Format 3 but using Forest Stewardship Council certified board and printing inks. Required by major European retail chains (IKEA, Lidl, Carrefour, and others in their sustainability programs), and increasingly requested by US specialty retailers. FSC certification must be maintained by both the box supplier and the glass lid factory under an FSC chain-of-custody scope. Ask the factory to confirm whether their box supplier holds FSC CoC before specifying this format.
Format 5 — Blister / PDQ display: Lids in a pre-filled counter display unit, typically 6 or 12 pcs per PDQ tray. Used for impulse-buy positioning in hardware stores, club formats (Costco, Sam's Club), and promotional end-cap placements. Higher per-unit packaging cost (USD 0.30–0.50 additional) and requires a separate display-unit structural design and print file.
Export carton cookware lid: specification variables and damage prevention
The export carton cookware lid specification determines whether your product survives ocean freight, distribution-center sorting, and last-mile delivery. The table below compares the carton and insert specifications for a 24 cm stainless-rim lid at three packaging formats.
| Specification | Brown-Box Bulk (12 pcs) | White Box Individual | Retail Color Box Individual |
|---|---|---|---|
| Outer carton board | Double-wall B-flute corrugated, 280 gsm liner | Single-wall B-flute, 200 gsm liner | Single-wall B-flute, 200 gsm liner |
| Carton inner dims (L×W×H) | 520×260×260 mm (12 pcs nested) | 270×270×55 mm (single lid) | 270×270×55 mm (single lid) |
| EPE foam insert | 20 mm sheets top/bottom; 5 mm dividers between pcs | Molded EPE profile, 15 mm all sides | Molded EPE or die-cut foam, 10 mm all sides |
| Foam density | 18–22 kg/m³ | 20–25 kg/m³ | 20–25 kg/m³ |
| Gross weight per carton | ~9.5 kg (12 × 720 g + carton) | ~0.95 kg | ~1.05 kg (inc. box board) |
| Carton compression rating | ≥ 750 N (for stacking in 40ft container) | ≥ 300 N | ≥ 300 N |
| Drop test standard | ISTA 1A or equivalent | ISTA 2A | ISTA 6-Amazon (if FBA-destined) |
| Per-unit packaging cost add | +$0.03–0.05 | +$0.10–0.16 | +$0.18–0.28 |
The ISTA 6-Amazon drop test is the most demanding packaging standard in the table and applies to any program shipping into Amazon FBA. It requires the individual retail box, without additional protective outer packaging, to survive a defined drop sequence (multiple height and orientation combinations) without product damage or significant box deformation. Tempered glass lids in standard retail color boxes routinely fail the ISTA 6-Amazon test unless the EPE foam insert is increased from 10 mm to 15 mm minimum, and the box board is upgraded from 250 gsm to 350 gsm. If your program targets Amazon FBA in the EU or US, require the factory to confirm whether they have previously run ISTA 6-Amazon certification on similar glass lid packaging, and request the test report.
Compliance and sustainability requirements for OEM packaging
Glass lid packaging for EU programs is subject to the EU Packaging and Packaging Waste Regulation (PPWR), which in 2026 requires minimum recycled content levels for specific packaging categories and establishes recyclability and compostability labeling standards. Retail color boxes made from kraft or white board are generally compliant, but blister inserts and PVC window panels require recyclability review. In the UK, the Plastic Packaging Tax (PPT) at GBP 217.85 per metric tonne applies to packaging containing less than 30% recycled plastic — relevant for any EPE foam insert or blister component. For US programs, state-level extended producer responsibility (EPR) laws in California, Oregon, Colorado, and Minnesota affect packaging design decisions for 2026 import programs. None of these compliance requirements involve FDA or LFGB directly, but BSCI social auditing extends to the box supplier if packaging is produced in a separate facility under the same audit scope.
Boyu Glass Factory Direct Advantage
Boyu Glass offers all five packaging formats in-house or through verified box suppliers within 15 km of the Fenghua facility. FSC chain-of-custody documentation is available on request for retail color box programs. ISTA 6-Amazon-compatible packaging configurations have been tested for 20–28 cm diameter glass lids with 15 mm EPE inserts. Packaging specification is written into OEM contracts with a change-notification clause — no packaging component substitution without buyer sign-off. Standard packaging lead time is 5–7 working days additional to the glass production schedule.
FAQ
Q1: How do I calculate the correct EPE foam insert thickness to prevent breakage during ocean freight?
For standard stainless-rim round glass lids shipped as individual retail boxes in ocean LCL or FCL, 15 mm molded EPE on all six faces provides adequate cushioning for ISTA 2A and ISTA 6-Amazon performance. For bulk nested configurations, 20 mm top/bottom sheets and 5 mm inter-layer dividers are the minimum. For larger diameters (28 cm and above), increase to 20 mm all-face individual boxes — the greater glass mass requires more deceleration distance at impact. Never use foam density below 20 kg/m³ for glass packaging; low-density foam compresses fully on first impact and provides no rebound cushioning for subsequent drops.
Q2: Can I supply my own packaging design files to the factory, and what format do they require?
Yes. Provide dieline PDF (with bleed and crop marks), print-ready artwork in AI or EPS format at 300 DPI, and Pantone color specifications for spot colors (if any). The factory converts to local printing-house format. Provide the dieline in the factory's carton template format if possible — ask for their standard size template for your lid diameter before investing in custom artwork at a non-matching size. First-run packaging proofs should be approved in physical form (not screen approval) before mass production begins.
Q3: Is the cost of packaging tooling (die-cutting mold for EPE foam inserts) included in the unit price, or invoiced separately?
EPE foam die-cutting molds typically cost USD 200–600 depending on insert complexity and are invoiced separately on the first order. They are owned by the buyer after payment and stored at the factory under the buyer's SKU code. Retail color box printing plates cost USD 300–800 per color set and are similarly invoiced separately. Both mold/plate costs are waived or amortized if the total annual order volume is confirmed above a negotiated threshold — typically 5,000–10,000 pieces per year for foam molds and 10,000+ for full-color box plates.
Related B2B Sourcing Guides
Continue reading on related sourcing topics for cookware brands and importers:
Conclusion: Three Takeaways
- Packaging format must match the distribution channel — not the product tier. A premium-spec SUS 304 lid in an under-specified carton fails at the retailer's dock; an Amazon FBA program without ISTA 6-Amazon testing generates return labels before the first consumer opens the box.
- EPE foam density and thickness are the two variables that determine breakage rate. Minimum 20 kg/m³ foam, 15 mm thickness on all faces for individual retail boxes, 20 mm top/bottom for bulk nested configurations — below these thresholds glass edge-chipping is a statistical certainty across a full container.
- Packaging specification belongs in the OEM contract, not a WeChat message. Board grade, foam density, insert profile, barcode format, FSC scope, and change-notification clause must all be in writing before the factory places the first packaging order.
