Ordering a glass lid factory sample order China is not a formality — it is the only controlled test a buyer has before committing to a full production run. A sample that passes a cursory visual check and is approved as "good" without structured inspection has told you almost nothing about whether the mass-production batch will meet your specification. The glass thickness may vary across the sample, the rim channel may be marginally deep, the gasket may be 5 Shore A harder than specified, or the logo may register differently on production silk-screen versus the test card. None of these defects are visible to the eye; all of them determine whether the container that arrives 45 days later goes straight to your warehouse or into a rework hold. This guide covers how to structure a sample order request, the eight dimensions every sample inspection should evaluate, and how to translate the sample approval decision into contract language that holds the factory accountable at mass production.
Pre-production sample glass lid: how to structure the sample request
A pre-production sample glass lid request should be a formal document — not a verbal approval on a WeChat message — because the sample is the reference artifact that defines acceptable mass production. The request should specify: the exact OEM drawing revision number to be sampled, the quantity (minimum 3 pieces per SKU, ideally 5 for statistical significance), the glass thickness, rim grade, gasket compound and hardness, knob material and finish, logo artwork file version, and packaging specification if the sample is to include retail packaging. State explicitly that the sample must be produced on the same equipment and with the same materials as the mass-production run — not on a dedicated sample bench with higher-grade components. Ask the factory to attach a sample production record (the tempering furnace lot number, gasket compound lot, and rim material certificate) to the sample shipment. This establishes the traceability chain before production starts.
Clarify sample pricing and lead time in writing: most professional factories charge 3–5× the production unit price for samples (due to setup cost), with a setup fee for silk-screen (USD 15–40 per color) waived if the production order follows within 90 days. Sample lead time is typically 7–10 working days from drawing approval. If the factory quotes 3 days or less on a complex OEM sample, treat it as a signal they are reusing a stock product rather than producing to your specification.

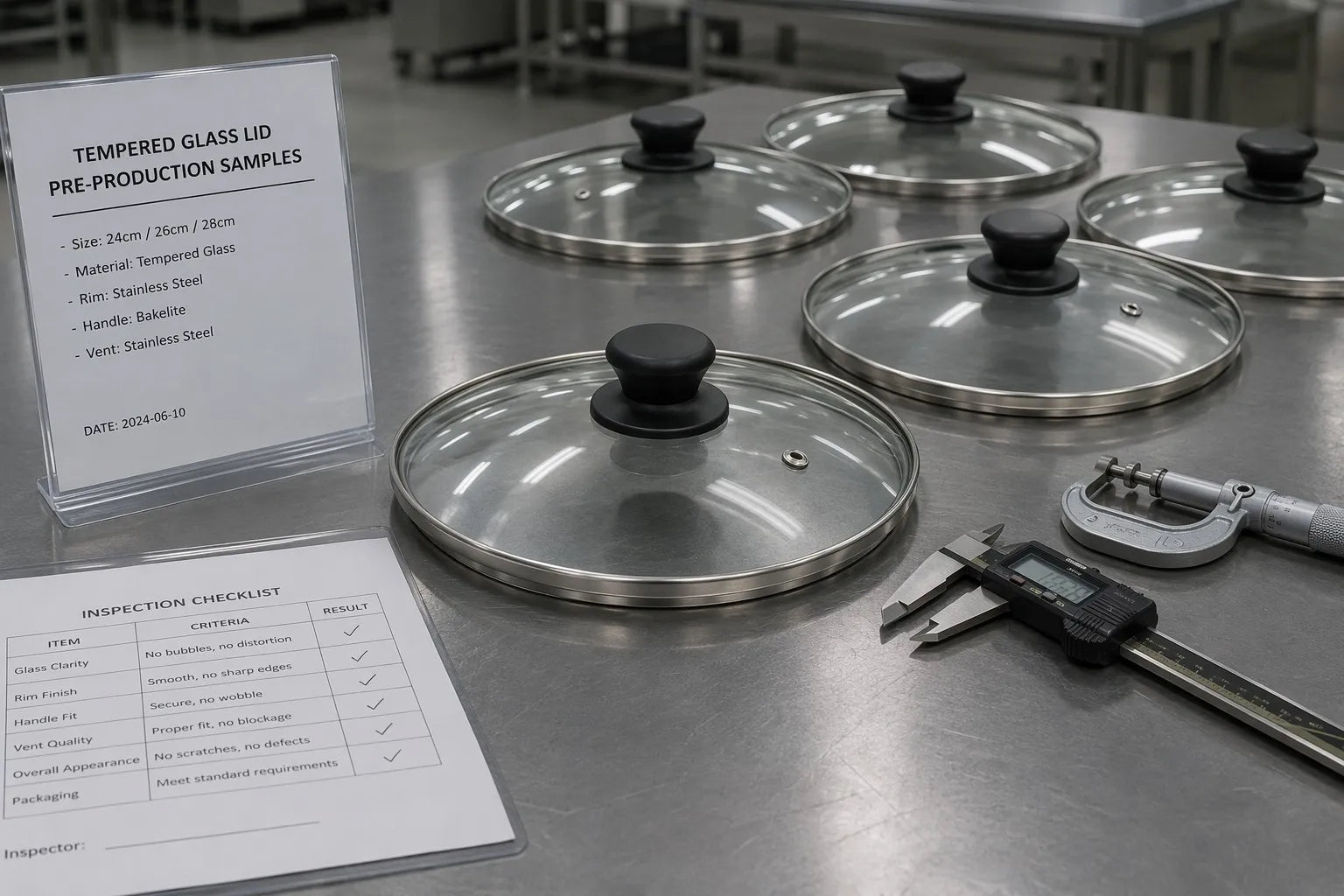

Cookware lid sample inspection: the 8 dimensions and how to evaluate each
A structured cookware lid sample inspection covers eight dimensions. The table below summarizes each dimension, the measurement or test method, and the pass threshold for a standard stainless-rim tempered glass lid program.
| Inspection Dimension | Method | Pass Threshold | Fail Risk if Skipped |
|---|---|---|---|
| Glass diameter | Vernier caliper, 4-point measurement | Nominal ± 0.5 mm | Lid rocks or gaps on pot body at production tolerance |
| Glass thickness | Ultrasonic gauge or caliper at 3 points (center, mid, edge) | Nominal ± 0.2 mm (4 mm spec → 3.8–4.2 mm) | Structural weakness at thin spots; thermal-shock failure risk |
| Post-temper bow / flatness | Place on flat plate; measure maximum gap at rim | ≤ 0.5 mm across diameter | Uneven rim contact; gasket fails to seal around full perimeter |
| Rim channel fit | Insert finger gauge or reference gasket; check seat depth | Gasket seated 55–65% into channel | Over-seated: gasket compressed, compression-set failure; under-seated: gasket falls out |
| Rim adhesion pull | Pull test at ≥ 50 N (SUS 304) or ≥ 40 N (SUS 430) | No rim separation at rated force | Rim delamination in field — safety recall category |
| Logo registration and durability | Visual alignment check; 20-cycle dishwasher simulation (65°C) | No edge lifting, color shift ≤ 10%, position ± 1 mm | Retail shelf rejection; chargeback at 50–100 cycles |
| Gasket hardness and seating | Shore A gauge at 3 points on gasket; visual channel seat check | Shore A within ± 5 of specified value | Seal failure or excessive compression-set |
| Vent hole position and finish | Caliper from center; visual edge chamfer check | Position ± 1 mm from drawing; no sharp edge at drill exit | Stress crack initiating from hole under heat cycling |
Two of the eight dimensions — rim adhesion pull test and vent hole finish — are most commonly skipped in informal sample inspections because they require either a force gauge or a magnifying glass. Both are also among the top causes of field returns. If you cannot conduct a full pull test on site, request the factory's pull test data from the sample production run (a professional factory will have run this routinely) and verify the lot-specific record number against the sample shipment documentation.
Sample approval and compliance documentation: what to confirm before mass production
A sample that passes all eight inspection dimensions should generate a formal approval record — a signed sample approval sheet referencing the OEM drawing revision number, the sample production record (tempering furnace lot, rim material certificate, gasket compound lot), and the approval date. This document becomes the reference for mass-production acceptance. If any dimension fails, document the specific failure with measurements, issue a corrective action request to the factory specifying the exact parameter that must change, and require a revised sample before production authorization. Mass production must not proceed on a conditional approval. Compliance documentation required before mass production release: FDA 21 CFR 177 or LFGB §31 reports covering the specific compound and configuration sampled; confirmation that the tempering furnace parameters for the sample run will be maintained at mass production; BSCI audit currency (within 24 months). The thermal shock test per EN 12983-1 should be run on at least 3 sample pieces at the same parameters as specified for production-batch testing — and the test must be run by the factory, not described as "planned for production."
Boyu Glass Factory Direct Advantage
Boyu Glass issues a sample production record with every pre-production sample shipment, including tempering furnace lot number, rim material certificate, and gasket compound lot. Pull test data and post-temper bow measurement are included as standard. Samples are produced on the same equipment as mass production runs, not on a separate sample bench. FDA, LFGB and BSCI documentation are available for review at sample approval stage. Sample lead time is 7–10 working days from approved OEM drawing; setup fees for silk-screen are waived on production orders placed within 90 days of sample approval.
FAQ
Q1: How many sample pieces should I order for each SKU to make a statistically meaningful inspection?
A minimum of 3 pieces per SKU allows you to detect gross consistency failures (e.g. two pieces at 3.7 mm glass thickness against one at 4.1 mm reveals a process variance that a single-piece sample would miss). For high-risk specifications (pressure-rated lids, OEM with logo), 5 pieces is the professional standard — it allows a pull test, a dishwasher cycle, and 2 intact pieces for the approval record. Never approve based on a single sample piece.
Q2: Should I conduct the sample inspection myself or hire a third-party inspector?
For a first-production OEM program, a third-party pre-production inspection (SGS, QIMA, Bureau Veritas) at the factory before shipment provides an independent verification of production-floor process parameters that you cannot assess remotely. The fee is typically USD 250–400 and includes dimensional checks, pull test, and visual AQL. Remote inspection of the shipped samples covers physical dimensions and logo quality but cannot verify that the tempering cycle was run correctly or that the gasket compound matches the certificate. Use both on a first order.
Q3: What is the standard practice if a sample fails one dimension but passes all others?
Issue a corrective action request (CAR) specifying: the exact dimension that failed, the measured value versus the specification value, and the required corrective action (e.g. "reduce gasket hardness from 65 Shore A to 50 Shore A; re-sample three pieces from revised compound"). Do not authorize mass production until a revised sample is received and the failing dimension has been re-measured as passing. A signed conditional approval — "pass pending fix in mass production" — is not a professional quality standard; factories interpret it as permission to proceed without the fix.
Related B2B Sourcing Guides
Continue reading on related sourcing topics for cookware brands and importers:
Conclusion: Three Takeaways
- The sample is the production reference — treat it as a legal document. A formal sample approval sheet, signed and linked to the OEM drawing revision number and the factory's sample production record, is the binding quality baseline for mass production acceptance.
- Eight dimensions, two most commonly skipped. Rim pull test and vent hole edge finish are the highest commercial-risk inspection items and the ones most often omitted from informal sample reviews. Both require specific equipment; require the factory's documented test data if you cannot measure them yourself.
- No conditional approvals. If a sample fails a dimension, issue a corrective action request and require a revised sample. Mass production authorized before all eight dimensions pass produces a full-batch quality problem, not a single-sample problem.
Ready to source factory-direct? Request a free quote within 24 hours: aman098@126.com or visit glasslidfactory.com
