Stainless Steel Rim Tempered Glass Lids: OEM Specifications and Factory Selection Guide
Partnering with a specialized stainless steel rim glass lid manufacturer China is the primary sourcing strategy for international cookware brands, commercial pot manufacturers, and retail private-label importers. Stainless steel rimmed tempered glass lids remain the global industry benchmark for cookware closures, offering an optimal balance of structural rigidity, impact resistance, and visual cooking transparency. However, achieving seamless lid-to-vessel fitment requires exact metallurgical specifications, automated roll-forming tolerances, and robust thermal shock tempering.
For cookware engineering directors and sourcing managers navigating 2026 production cycles, subtle differences in stainless steel grades, crimping profiles, and glass annealing protocols dictate long-term product durability and brand reputation. This technical sourcing guide details critical engineering specifications for stainless steel rimmed lids, benchmarks core rim configurations, and establishes a proven factory audit checklist for global procurement teams.
Metallurgical Standards & Precision Crimping: Engineering a 304 Stainless Glass Lid OEM
When engineering a premium 304 stainless glass lid OEM project, material selection and mechanical crimping methods directly determine corrosion resistance and operational safety in commercial and domestic kitchens:
- Alloy Grade Verification (SUS 304 vs. SUS 201): Authentic SUS 304 austenitic stainless steel (containing 18% chromium and 8% nickel) delivers non-negotiable chemical passivity against organic food acids, saline boiling vapors, and harsh alkaline commercial dishwasher detergents. While economical SUS 201 steel reduces baseline raw material expenditure, its lower nickel content renders it susceptible to micro-pitting, crevice rust, and stress-corrosion discoloration over prolonged kitchen cycles. Qualified Chinese factories must provide verified mill test certificates (MTC) and pass 48-hour neutral salt spray (NSS) testing.
- Mechanical Roll-Forming Without Adhesives: High-grade stainless steel rims are mechanically roll-formed and crimped directly onto the perimeter of the tempered glass disc using automated multi-roller rotary profiling machines. Chemical glues or adhesive bonding agents are strictly prohibited under international food-contact hygiene standards. The roll-formed hem must exert uniform circumferential compressive pressure (±0.3 mm concentricity tolerance) to secure the glass firmly while accommodating microscopic thermal expansion differential between glass and metal during high-heat cooking.

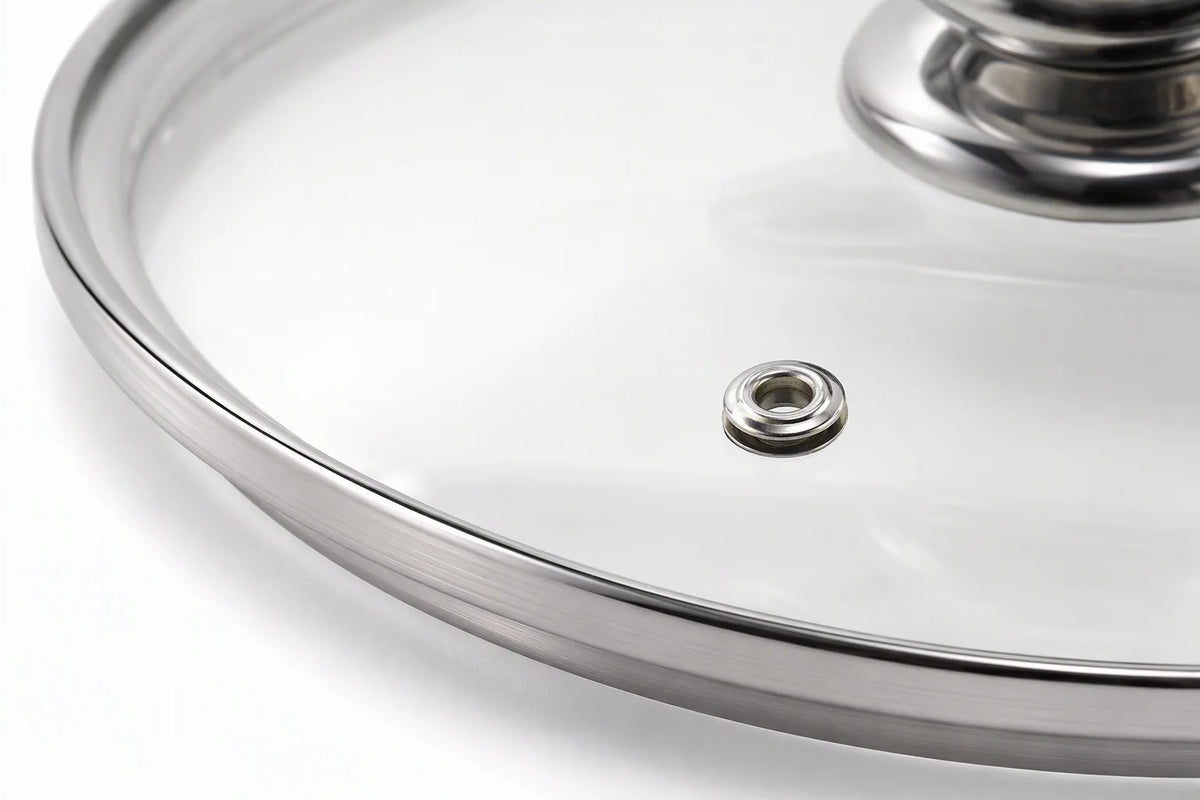

- Edge Deburring and Steam Vent Precision: Raw stainless steel coil slit edges must undergo mechanical vibratory deburring before roll-forming to prevent micro-abrasions along the glass edge that could trigger spontaneous shattering. Center handle mounting holes and perimeter steam vent eyelets require precision punch-die tooling to prevent burr formation and ensure steam release efficiency.
Product Architecture Matrix: Sourcing C-Series Glass Lid Wholesale
In high-volume procurement, managing C-series glass lid wholesale orders alongside modern G-type variants requires clear understanding of dimensional geometry and functional trade-offs. The comparative matrix below benchmarks the three primary stainless steel rim architectures produced by Chinese export manufacturers:
| Technical Dimension | C-Series Classic Rounded Rim | G-Type Narrow Stainless Rim | G-Type Wide / Stepped Rim |
|---|---|---|---|
| Rim Profile Geometry | Curved C-channel hem enclosing the glass edge; standard 7–10 mm visible metal band. | Minimalist flush profile; ultra-slim 3–5 mm visible metal perimeter band. | Multi-tiered stepped flange designed to seat across multiple pot diameters. |
| Cookware Compatibility | Universal fitment for non-stick frying pans, Dutch ovens, saucepans, and woks. | Premium architectural cookware lines, tri-ply stainless clad vessels, induction sets. | Multi-cookers, universal replacement lid programs, multi-tier steamer pots. |
| Steel Strip Thickness | 0.40 mm – 0.50 mm (SUS 201 / SUS 304) | 0.45 mm – 0.55 mm (primarily SUS 304) | 0.50 mm – 0.65 mm (reinforced SUS 304) |
| Glass Edge Impact Defense | High: fully wrapped circumferential steel acts as a rigid shock-absorbing bumper. | Moderate: sleek aesthetics prioritize visibility over heavy perimeter impact defense. | Very High: heavy-gauge stepped steel shields glass against side-wall pot knocks. |
| Container Stacking Density | Standard dome height optimizes nesting in 5-ply export cartons (high FCL count). | Flat or low-dome profiles maximize pallet and container volume efficiency. | Stepped geometry adds vertical clearance; slightly lower nesting density. |
Note: Specifications represent standard export manufacturing benchmarks across high-volume Ningbo container programs.
Regulatory Compliance, Testing Protocols, and Thermal Shock Integrity
Exporting stainless steel rimmed glass lids to North American and European markets mandates strict compliance with global food-contact materials legislation and structural safety standards:
- Food Contact Hygiene (FDA 21 CFR & LFGB): All finished cookware lids undergo rigorous extractive chemical testing. Both the stainless steel rim (SUS 304) and optional food-grade silicone components must strictly comply with US FDA 21 CFR 175.300 / 177.2600 and German LFGB Section 30/31 benchmarks, certifying zero migration of heavy metals (lead, cadmium, hexavalent chromium) into food-simulating acidic solutions.
- High-Gradient Thermal Shock Testing (ΔT 180°C–200°C): To ensure structural reliability during rapid kitchen temperature swings, production batch samples undergo destructive thermal shock testing. Lids are heated in industrial convection chambers to 200°C for 30 minutes and immediately immersed in 20°C cold water. High-quality lids achieve a 100% survival rate without micro-fracturing or rim detachment.
- Fragmentation Safety Benchmark (EN 12983-1): Destructive mechanical center-punch impact testing confirms tempered glass fragmentation compliance under European Standard EN 12983-1. Upon localized fracture, the tempered glass core must disintegrate into at least 40 small, blunt granules within any 50×50 mm grid, eliminating dangerous knife-like shards.
- Ethical Social Compliance (amfori BSCI): Leading manufacturing plants maintain verified amfori BSCI audit certification and ISO 9001 certified quality control frameworks, ensuring full audit readiness for international department stores and major retail chains.
Boyu Glass Factory Direct Advantage
Headquartered in Fenghua, Ningbo, Fenghua Boyu Glass Co., Ltd. (BoyuGlassLid) has specialized in precision tempered glass lid manufacturing since 2001. Over 25 years of continuous production, Boyu Glass has established a vertically integrated manufacturing facility featuring automated horizontal roller-hearth tempering furnaces, CNC glass cutting tables, high-speed rotary rim-forming machines, and in-house metallurgical testing laboratories.
Our core manufacturing capabilities cover classic C-Series rounded stainless rim covers, high-precision G-Narrow and G-Wide universal glass lids, and custom Silicone-Rim assemblies for electric pressure cookers and multi-cookers. With an accessible baseline MOQ of 1,000 pieces per size, full OEM/ODM custom tooling capabilities, 7-day sample prototyping, and a firm 45-day container shipment commitment, Boyu Glass represents the premier manufacturing partner for cookware brands worldwide.
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between C-type and G-type stainless steel rims?
A: C-type rims feature a classic rounded, folded channel that wraps entirely around the glass edge, offering maximum shock absorption for everyday cookware. G-type rims utilize a flatter, lower-profile edge that provides a sleek, modern aesthetic popular in premium contemporary cookware lines.
Q2: How can cookware importers verify that a factory is genuinely using SUS 304 stainless steel?
A: Importers should require certified Mill Test Certificates (MTC) corresponding to the raw steel coil heat number and conduct periodic third-party spectrometer chemical composition testing or 48-hour neutral salt spray (NSS) corrosion testing to verify nickel and chromium percentages.
Q3: Can custom handle mounting holes and steam vents be customized without new mold costs?
A: Yes. Center knob holes (standard 5.0 mm, 6.0 mm, or 8.0 mm) and steam vent eyelet apertures are punched using modular CNC drilling setups prior to thermal tempering, allowing brands to customize hardware configurations with zero tooling surcharges.
Conclusion
Specifying high-performance stainless steel rimmed tempered glass cookware lids requires balancing metallurgical integrity, crimping precision, and compliance testing. Essential procurement takeaways:
- Mandate authentic SUS 304 steel: protect brand equity and avoid corrosion returns by specifying verified 304 alloy for dishwasher-safe cookware programs.
- Audit rim crimping uniformity: inspect factory automated roll-forming lines to ensure tight, adhesive-free mechanical crimping with strict concentricity tolerances.
- Source factory-direct from established specialists: partner with experienced manufacturers like Boyu Glass in Fenghua, Ningbo, to secure transparent cost structures, certified BSCI/LFGB compliance, and direct-to-port logistics efficiency.
